DAHUA PFM800-E
900 RSD

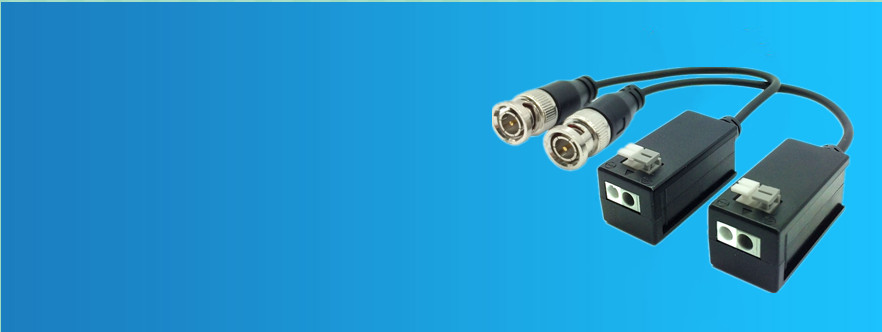

Pasivni primo-predajnik HDCVI signala po upredenoj parici; Domet 400m za 720P ili 250m za 1080P HDCVI signal; Potiskivanje šuma (CMRR) od min. 60dB; Inkorporirna transientna zaštita; Sa muškim BNC konektorom i “push” terminalima; Cena je za par.
- Opis
- Dodatne informacije
- Info za kupce
Opis
PFM800
| Model | PFM800 |
| Properties | |
| Transmission Signal | 1 channel |
| Transmission Distance | 720P: 400M (max) 1080P: 250M (max) |
| Category Type | UTP CAT 5E/6 (R＜10Ω/100M) |
| Video Transmission Properties And Port | |
| Coaxial Video Connector | BNC-M |
| Twisted-pair Video Connector | Push-terminal |
| Compatible Format | HDCVI |
| Resolution | 720P/1080P |
| Anti-interference | ＞60db |
| Protection | |
| ESD | 1a contact discharge electricity level 3 |
| 1b air discharge electricity level 3 | |
| Per:IEC61000-4-2 | |
| Coaxial Cable Connector | 2KV(common-code) Per:IEC61000-4-5 |
| UTP Cable Connector | 2KV(different-code),4KV(common-code),Per:IEC61000-4-5 |
| Impedance | |
| BNC Male | 75 ohms |
| UTP Cable | 100 ohms |
| Physical Properties | |
| Dimension(L*W*H) | 53mm*20mm*17mm |
| Shell | ABS |
| Color | Black |
| N.W. | 25G |
| Stability | |
| MTBF | ＞10000H |
| Environmental | |
| Operating Temperature | -10~55℃ |
| Storage Temperature | -20~70℃ |
| Humidity | 0~95%(non-condensing) |
Dodatne informacije
| Težina | 1.30000000 kg |
|---|---|
